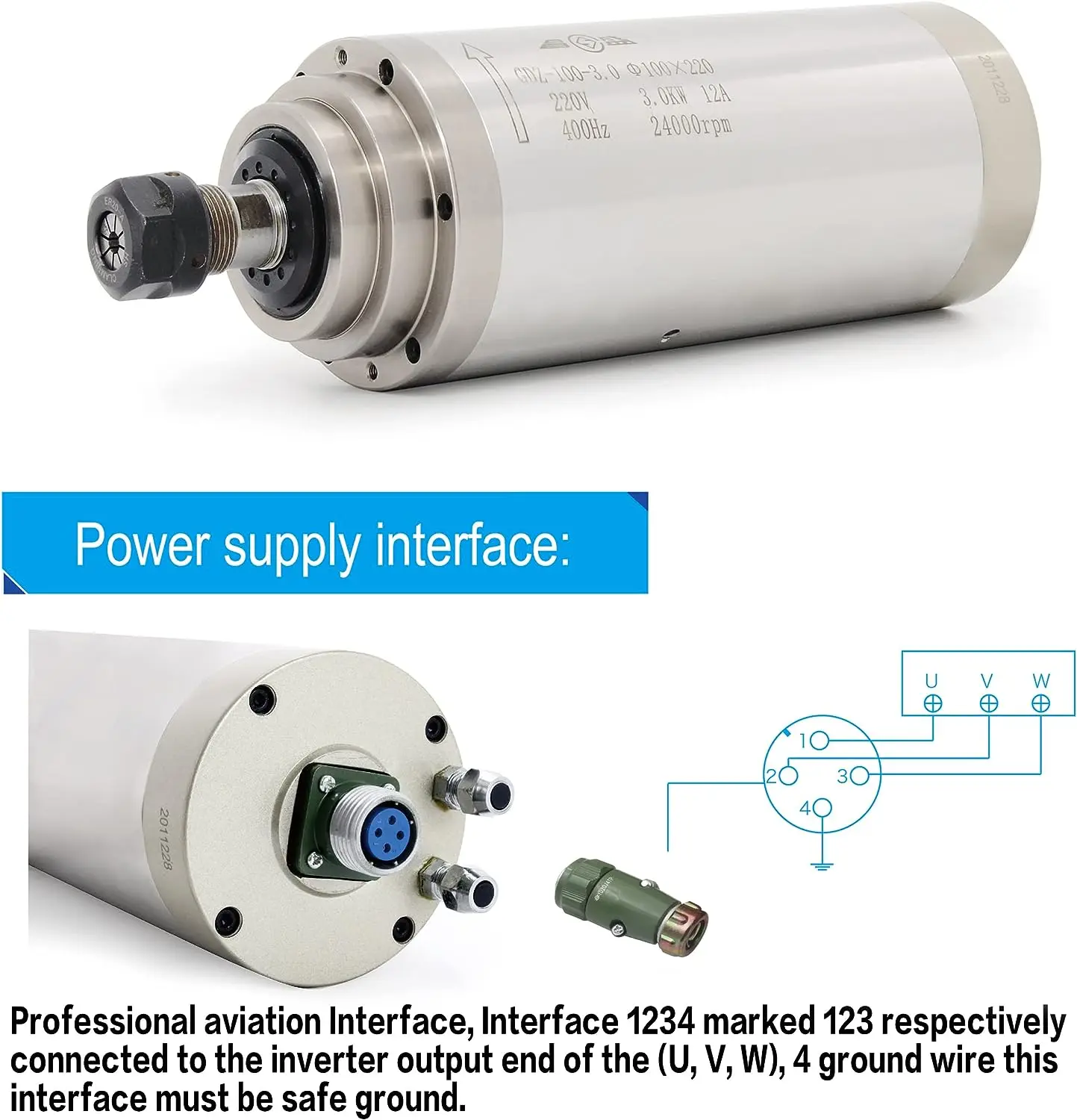

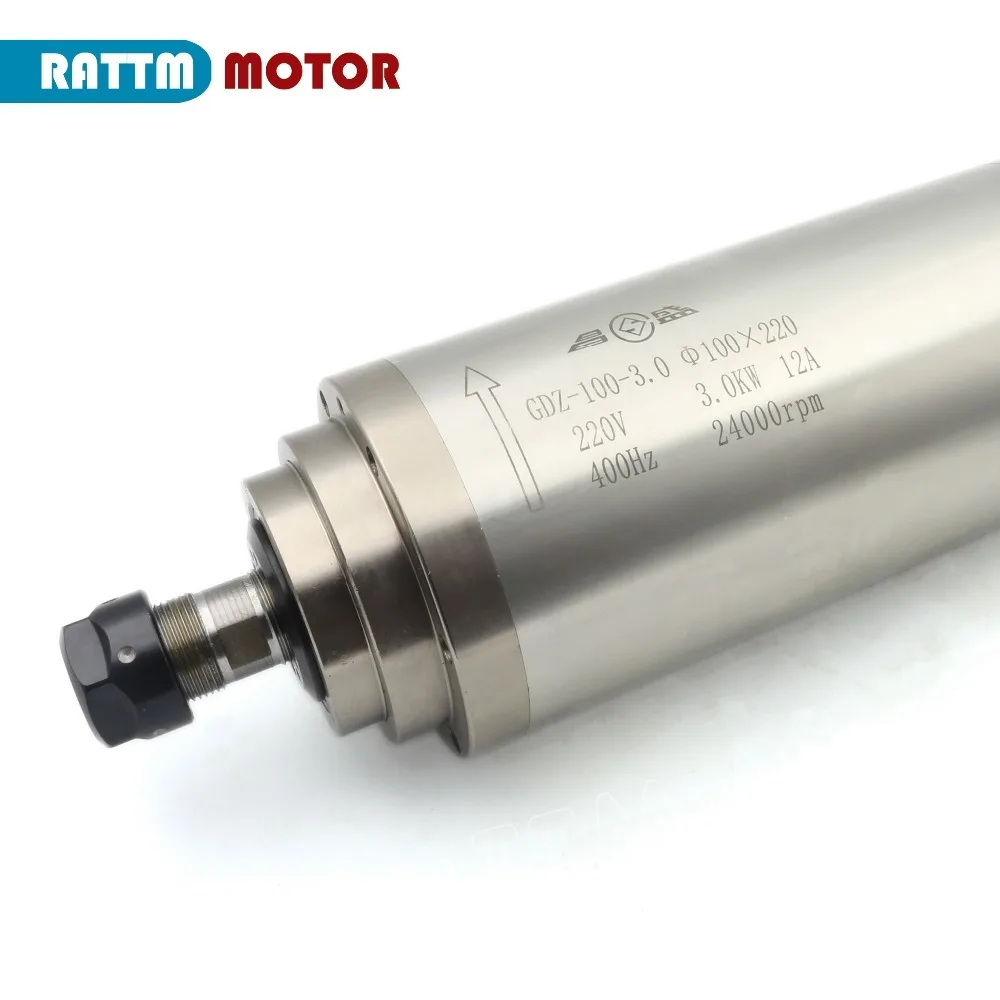

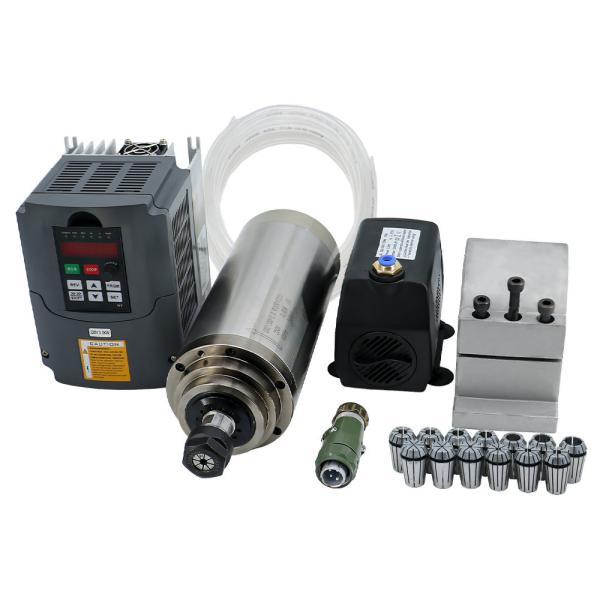

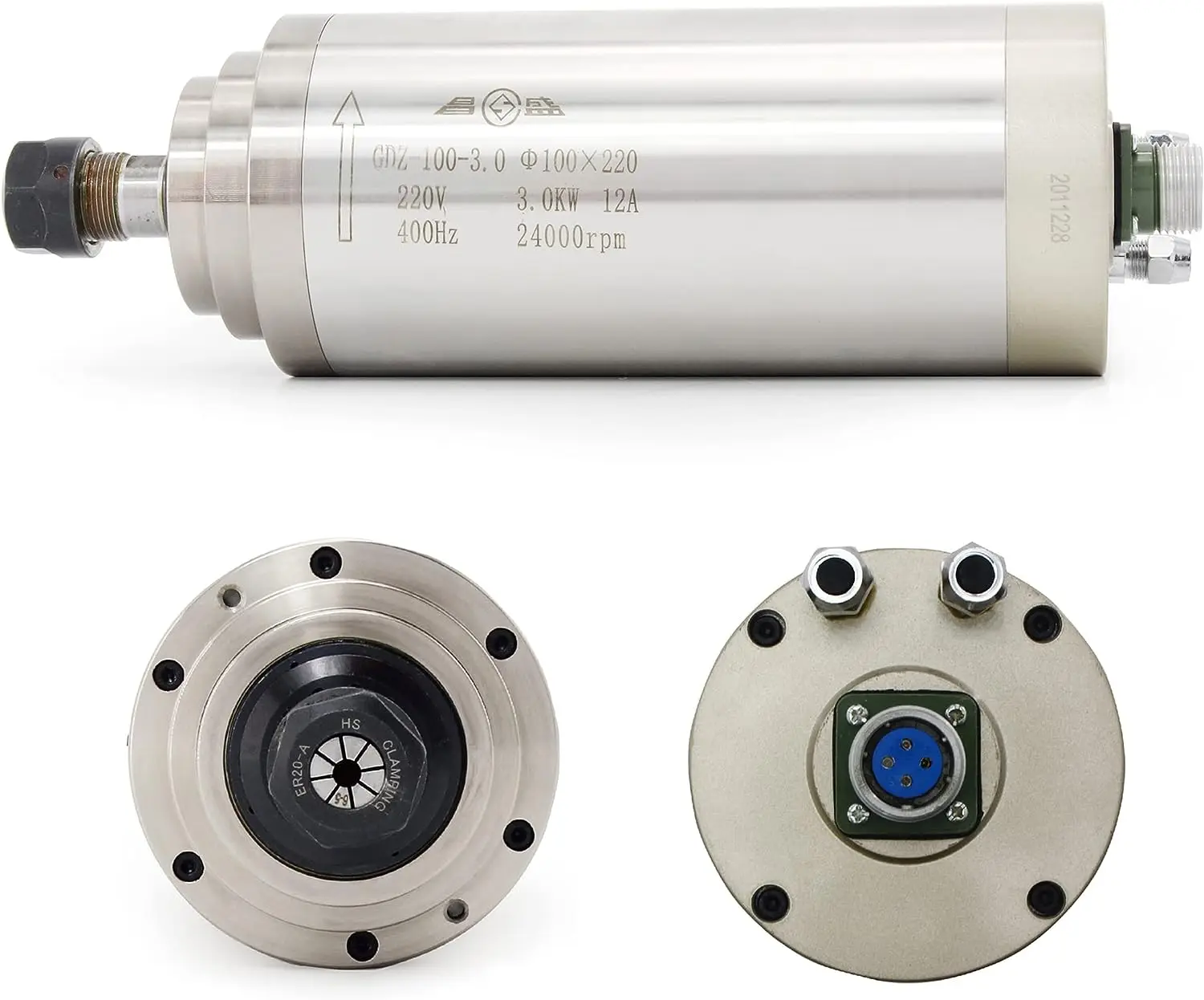

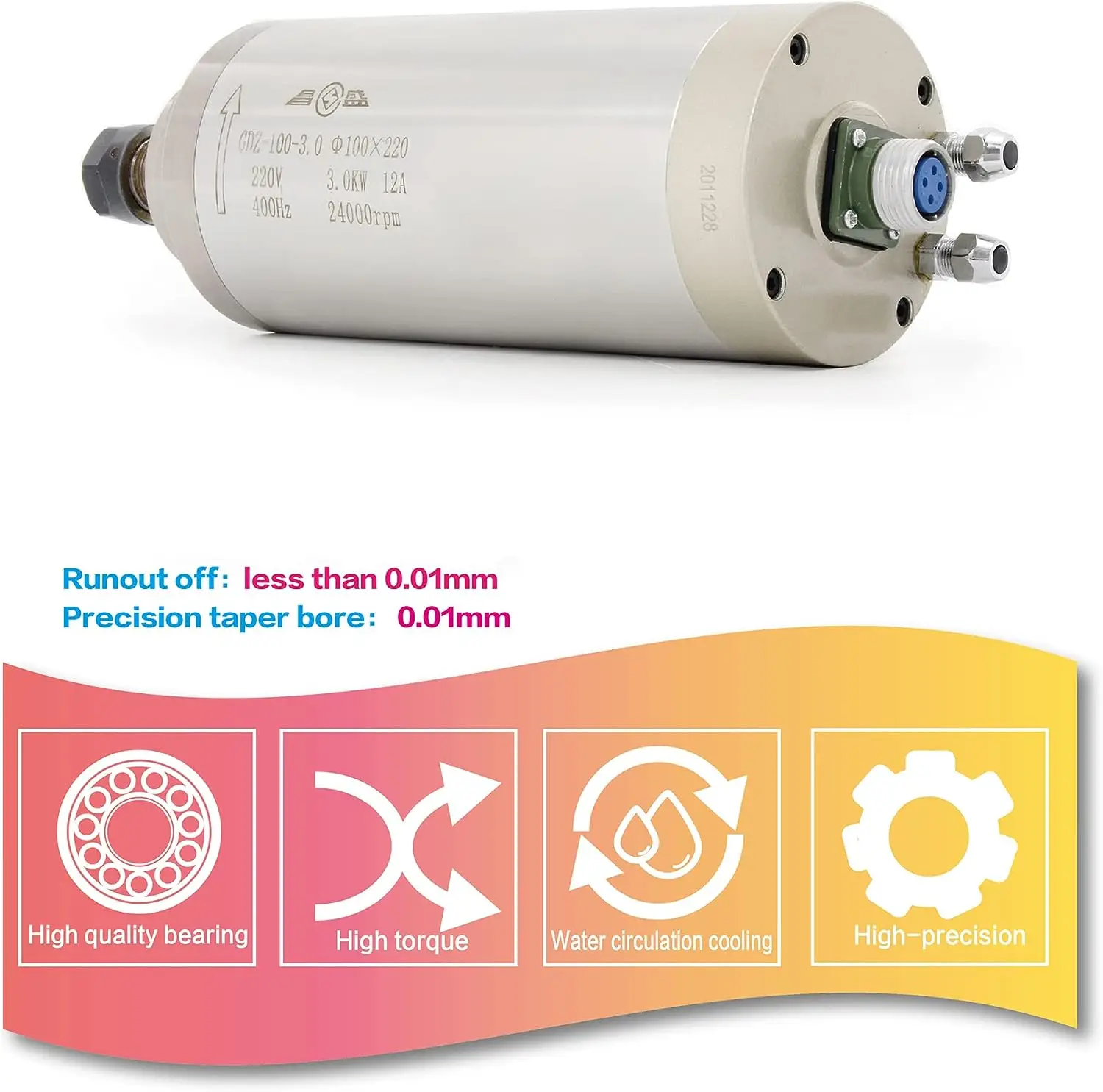

Water Cooled VFD Cnc Spindle Motor Kits 3KW 220V 24000rpm ER20 Collets

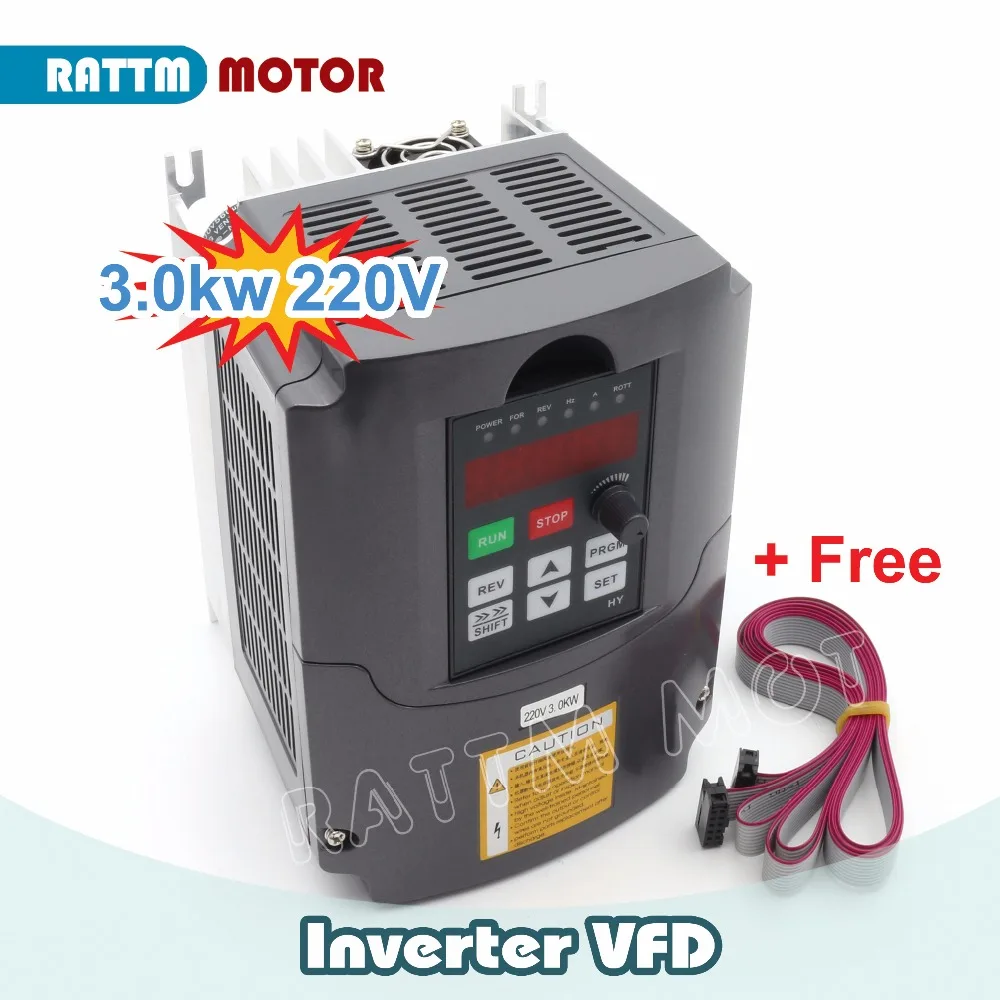

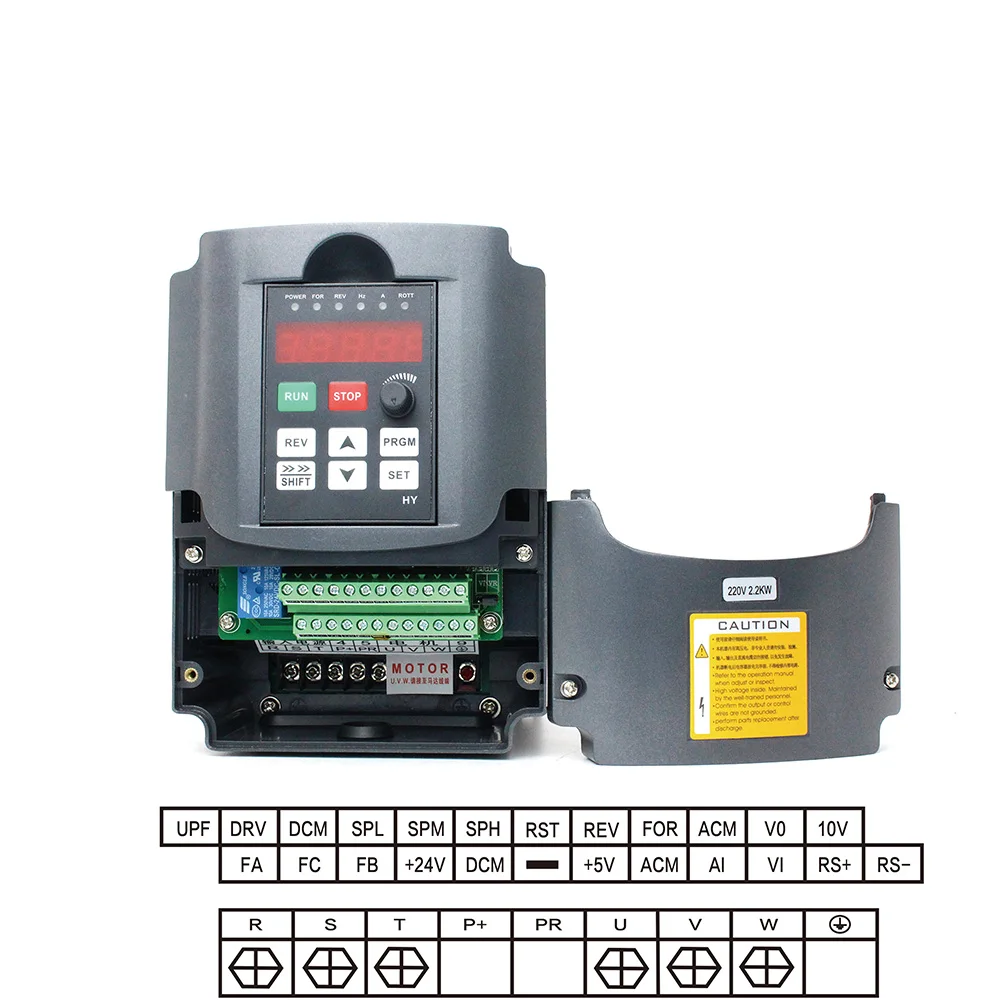

1 x 3KW Inverter 4HP

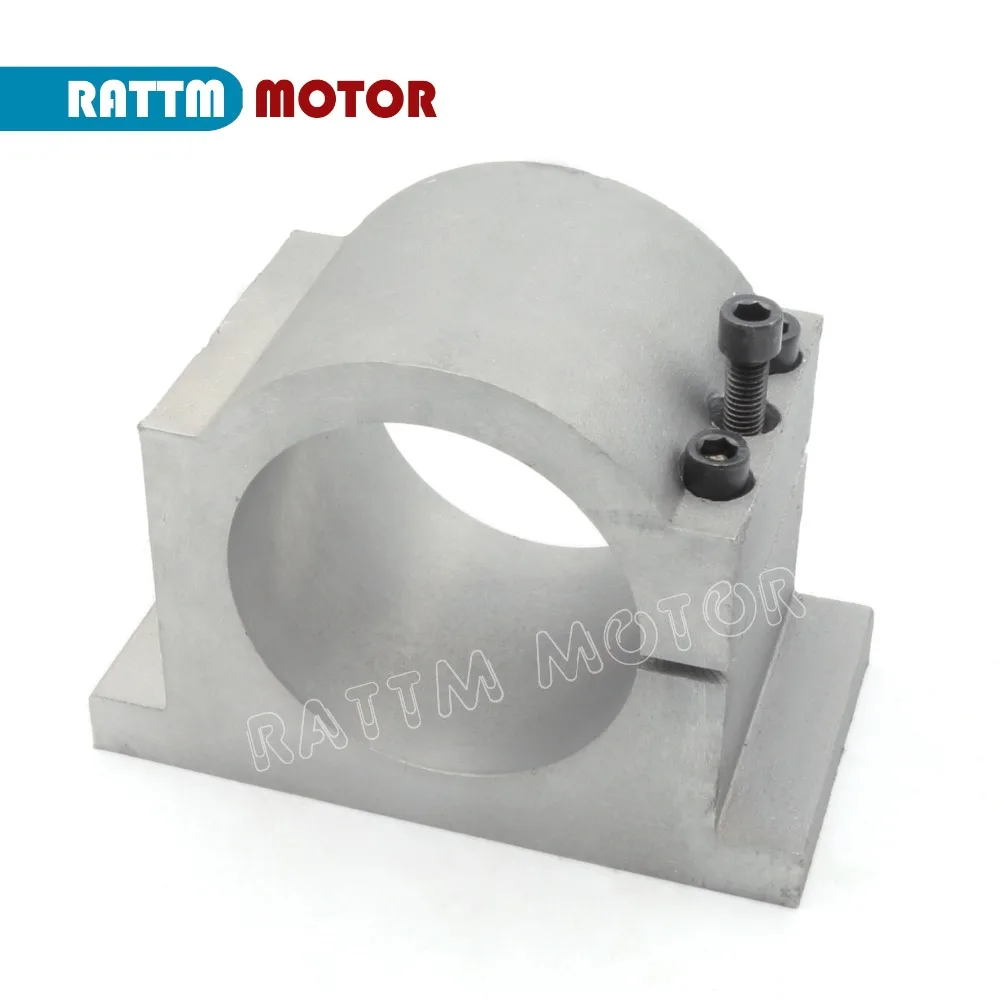

1 x 100mm cast aluminium bracket

1 x 75mm Water pump

1 x 5M water pipes

1 Set of ER20 collet( 14pcs)

The manual for the VFD will send via email.

ProductFeature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various control technique by both synchronization and non-synchronization,
dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

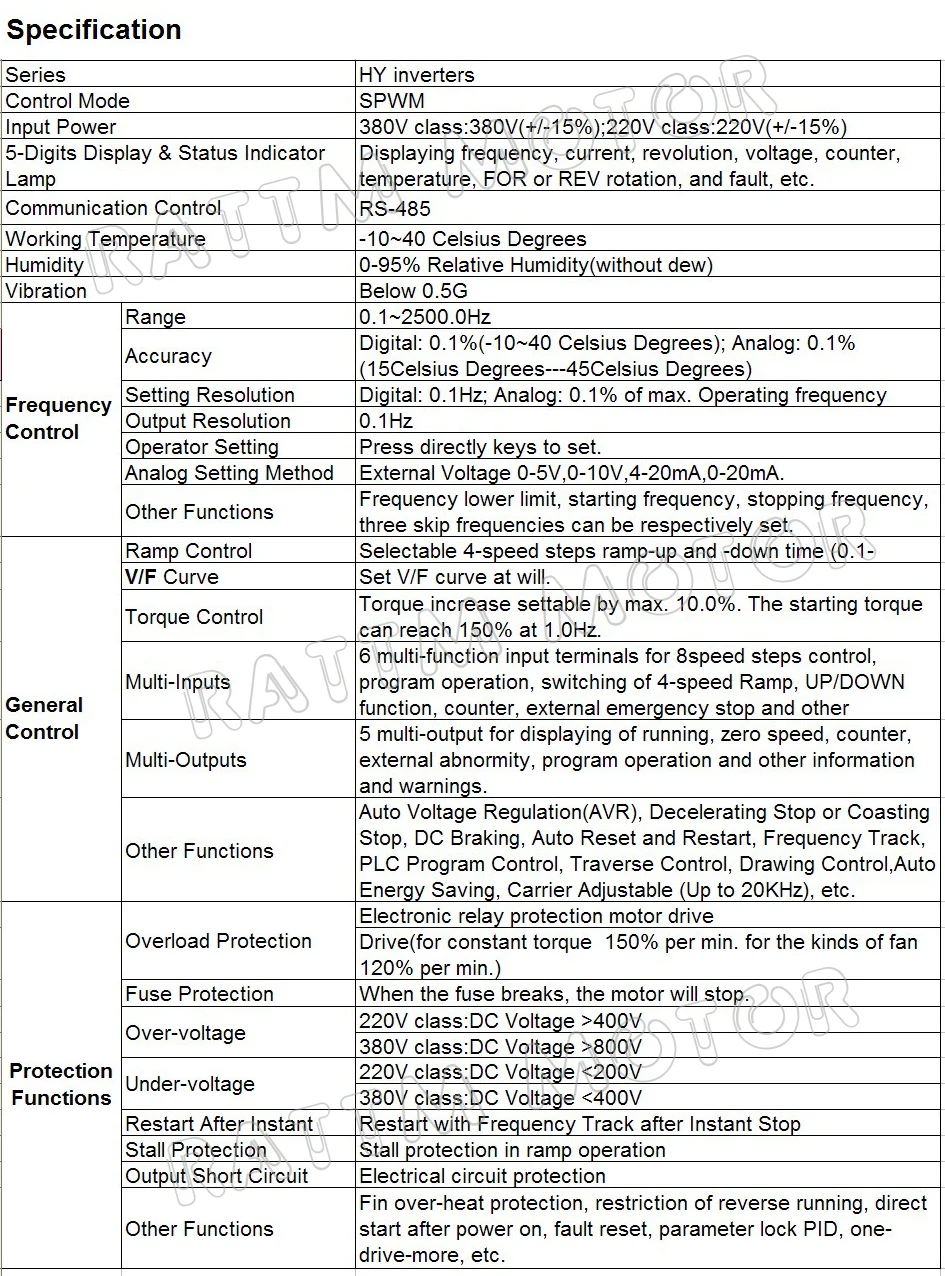

Tech parameters:
1) Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us

for item stock.
2) Output Voltage 208Vac-240VAC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
7) Warranty: 1 year from the date you purchased

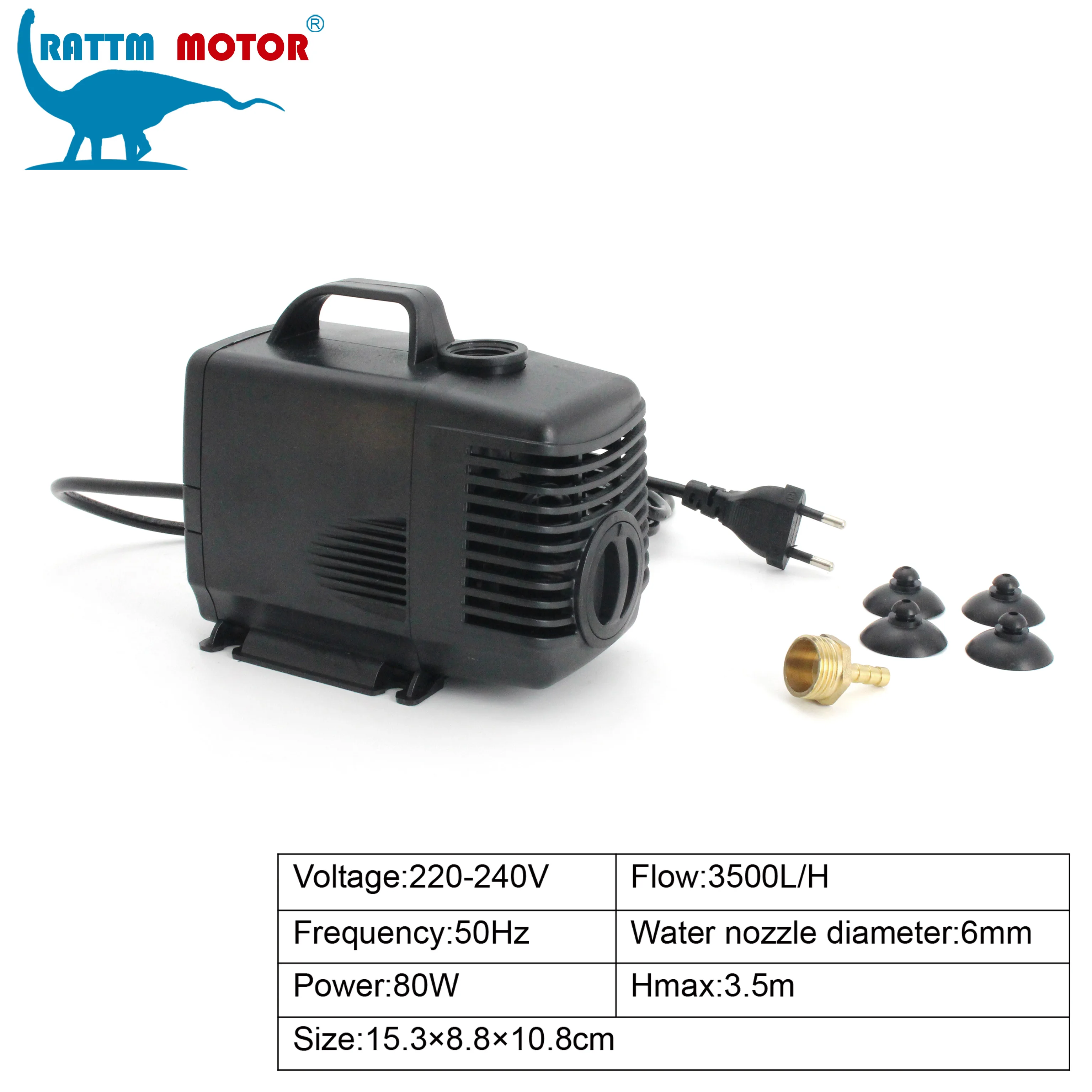

80W CNC spindle motor water pump 3.5m 220VAC

Specification:

Pump length:3.5m

Voltage:220-240VAC

Power:80W

Flow:3000L/H

Size:150x80x140mm

Water nozzlediameter:6mm

Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

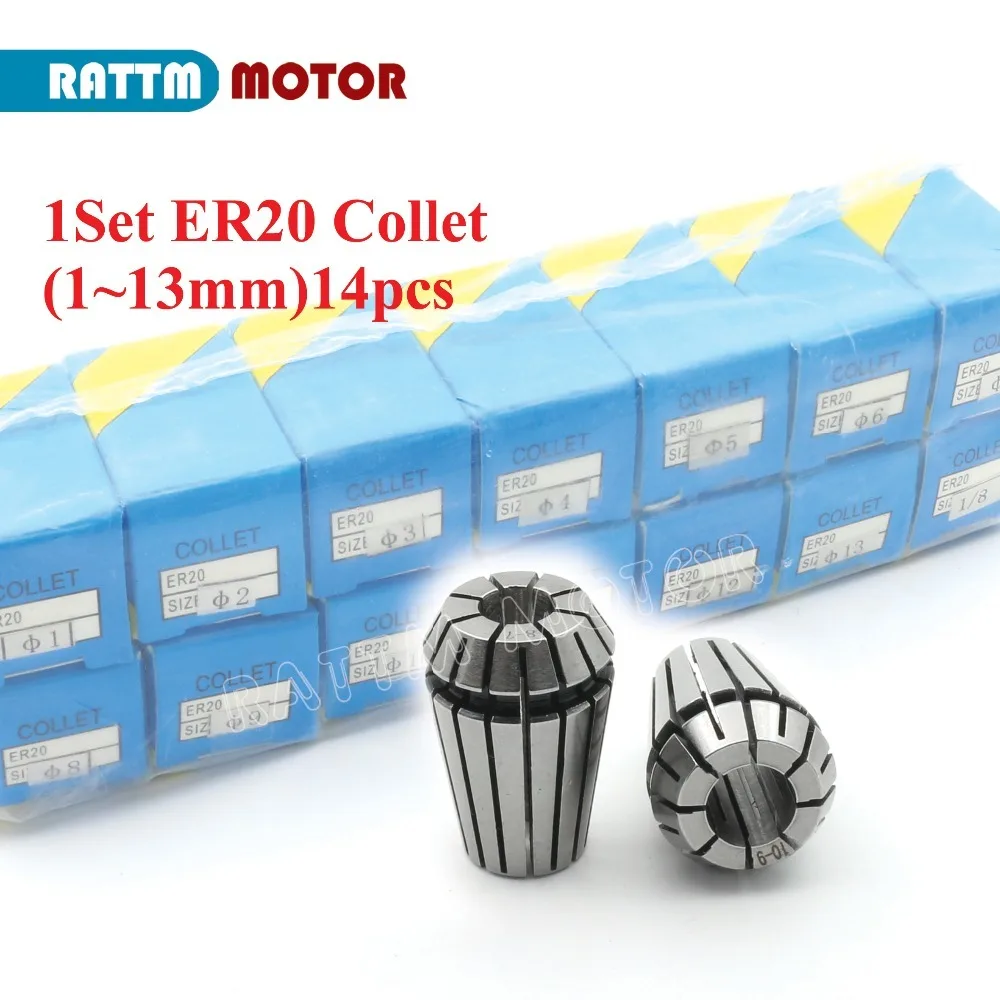

1 Set (1-13mm) 14Pcs ER20 Collets
