600W ER11 CNC Spindle Motor Kit With DBD600M2 BLDC Brushless Driver

Name: 600W ER11 CNC Spindle Motor Kit With DBD600M2 BLDC Brushless Driver
Brand: RATTM MOTOR
Price: 112.5 USD

China 600W ER11 CNC Spindle Motor Kit With DBD600M2 BLDC Brushless Driver wholesale

Brand Name : RATTM MOTOR

Model Number : DBD600M2

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD112.5-152/Piece

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100Pieces/day

Delivery Time : 3-5 work days

Packaging Details : Carton case, 45*25*35

Product Category : Spindle Motor Kit

Operating Speed : 10800rpm

Maximum Torque : 0.55N.m

The radial run off : less than 0.02mm,it can actually be less than 0.01mm

output power : 691W

spindle size : 92*202mm

Contact Now

600W ER11 DC Brushless CNC Spindle Motor Kit With DBD600M2 BLDC Brushless Driver For Router Milling Machine

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location	Shipping Carrier	Delivery Countries	Delivery Time	Advandge
Germany&Czech Republic	DHL/GLS	EU Countries	3-12 Business days	1. Fast Delivery 2. No VAT Tax
United States	UPS/USPS	United States only	3-12 Business days	1. Fast Delivery 2. No VAT Tax

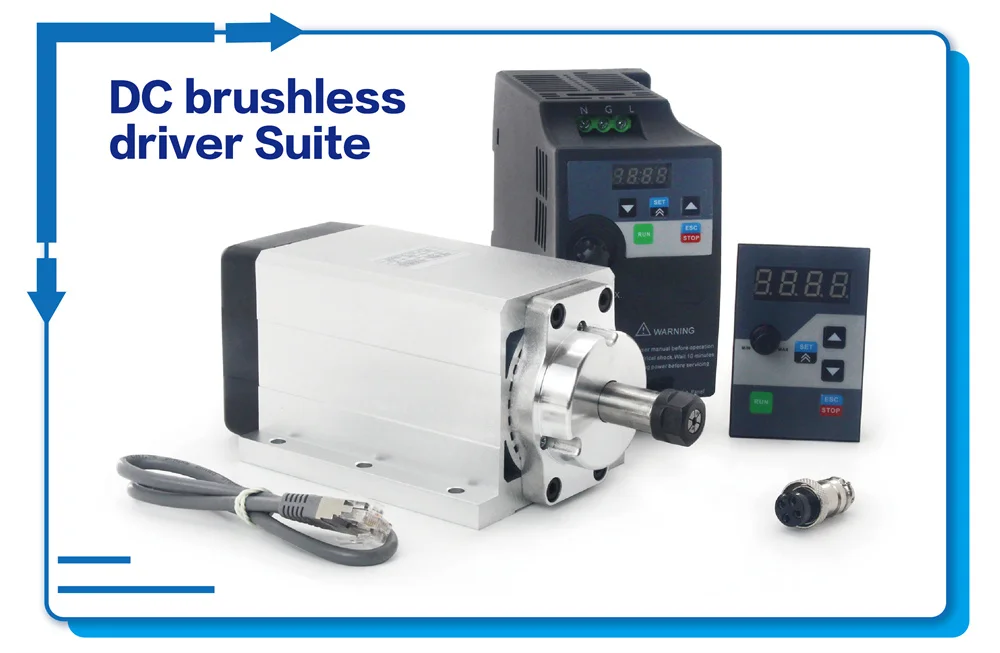

Package include:

1 x 600W Brushless motor ER11 220V (Imported high quality bearings,the Front bearing is NSK6002, rear bearing is NMB608)

1 x BLDC Brushless motor driver DBD600M2

1 x control panel

1 x netwok port cable.

600W ER11 CNC Spindle Motor Kit With DBD600M2 BLDC Brushless Driver

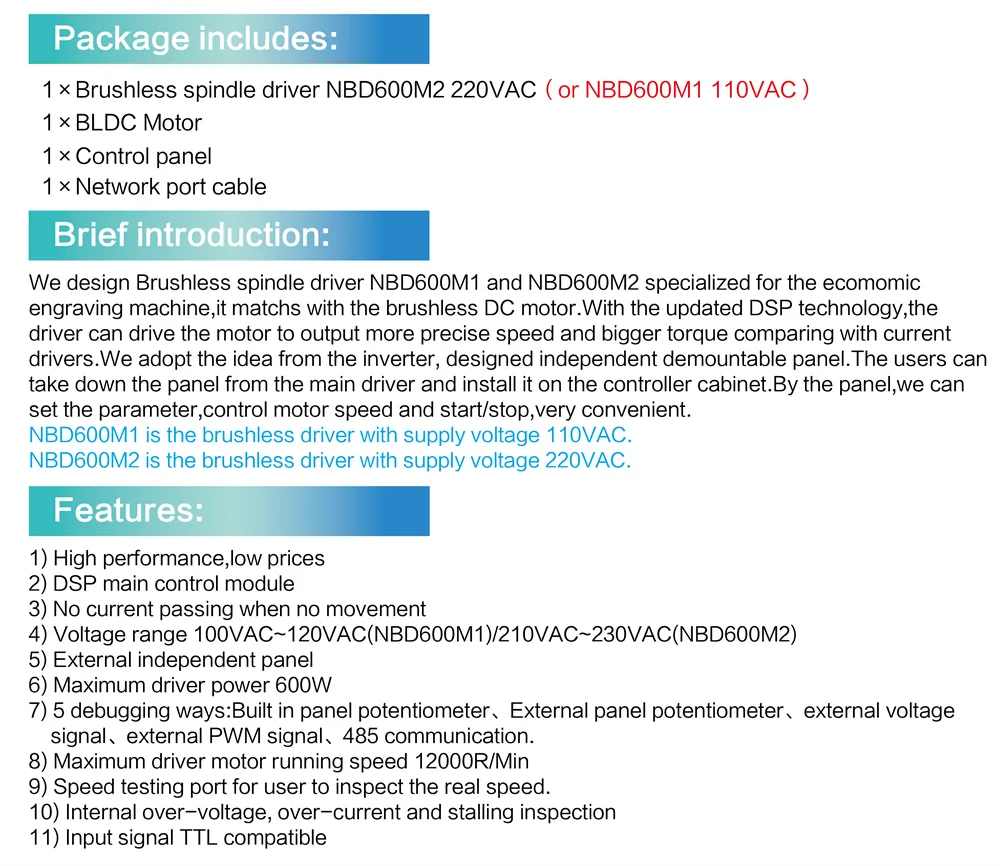

Products brief introduction

We design Brushless spindle driver NBD600M1 and NBD600M2 specialized for the

ecomomic engraving machine,it matchs with the brushless DC motor.With the updated DSP

technology,the driver can drive the motor to output more precise speed and bigger torque

comparing with current drivers.We adopt the idea from the inverter, designed independent

demountable panel.The users can take down the panel from the main driver and install it on the

controller cabinet.By the panel,we can set the parameter,control motor speed and

start/stop,very convenient.

NBD600M1 is the brushless driver with supply voltage 110VAC.

NBD600M2 is the brushless driver with supply voltage 220VAC.

Specification feature

1) High performance,low prices

2) DSP main control module

3) No current passing when no movement

4) Voltage range 100VAC~120VAC(NBD600M1)/210VAC~230VAC(NBD600M2)

5) External independent panel

6) Maximum driver power 600W

7) 5 debugging ways:Built in panel potentiometer,External panel potentiometer,

external voltage signal,external PWM signal,485 communication.

8) Maximum driver motor running speed 12000R/Min

9) Speed testing port for user to inspect the real speed.

10) Internal over-voltage, over-current and stalling inspection

11) Input signal TTL compatible
