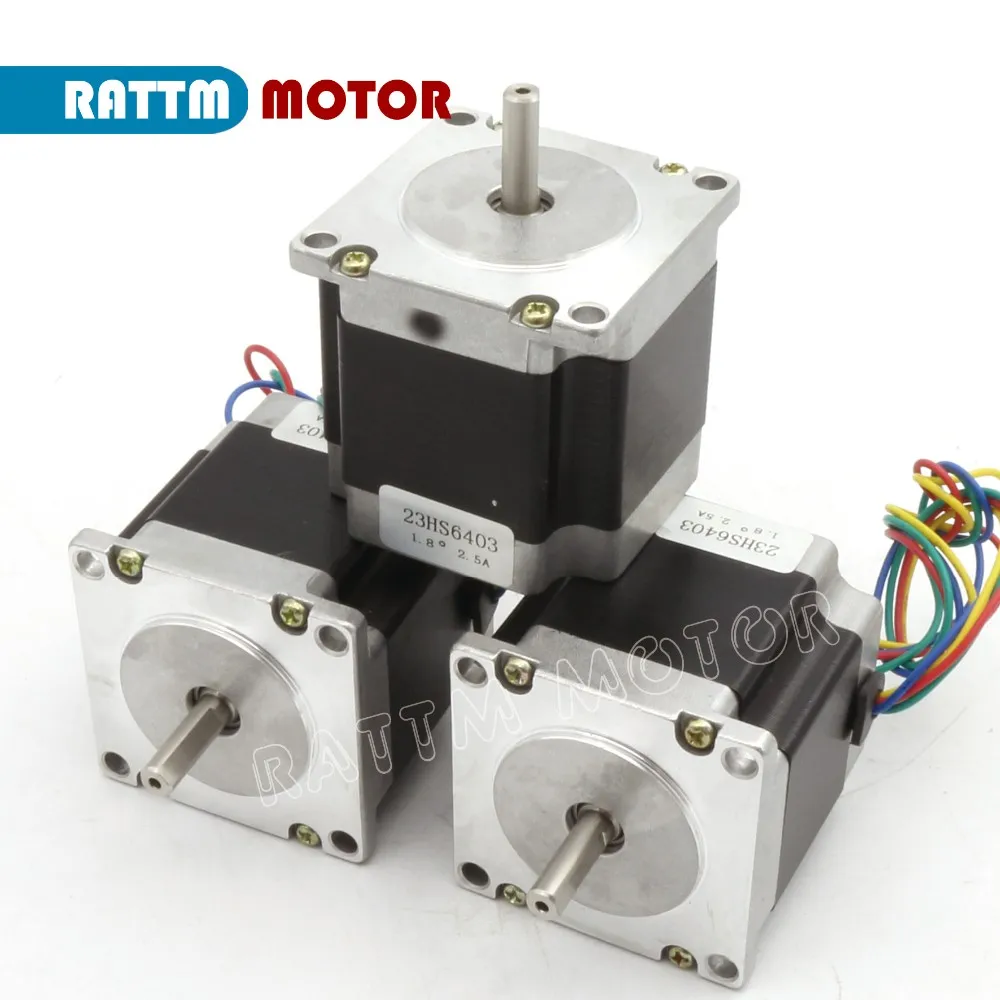

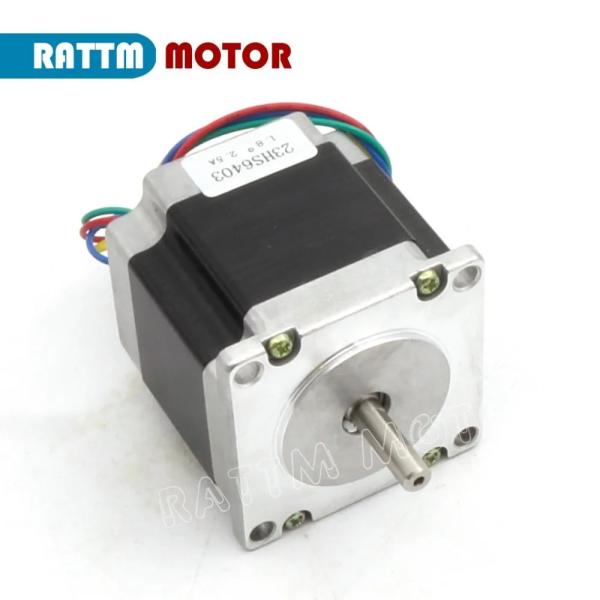

Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403

Name: Nema23 Stepper Motor 56mm 165 OzIn 110Ncm 25A 23HS6403
Brand: Rattm Motor
Price: 11.4 USD

China Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403 wholesale

Brand Name : Rattm Motor

Model Number : 23HS6403

Certification : CE CCC

Place of Origin : China

MOQ : 1piece

Price : $11.4-12.8

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 5000

Delivery Time : 2-7 work days

Packaging Details : Independent anti-collision foam+outer box packaging for each product

Color : black

Number Of Leads : 4

Rated Current : 2.5A

Ambient Temperature : -20 to 50 degrees Celsius

Body : 57*56mm

Shaft diameter : 6.35mm

Step Angel : 1.8°

Contact Now

Stepper motor Nema23 56mm 165 Oz-in/110Ncm/ 2.5A CNC stepper motor23HS6403

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location	Shipping Carrier	Delivery Countries	Delivery Time	Advandge
Germany&Czech Republic	DHL/GLS	EU Countries	3-12 Business days	1. Fast Delivery 2. No VAT Tax
United States	UPS/USPS	United States only	3-12 Business days	1. Fast Delivery 2. No VAT Tax

Stepper motor's red wire connect to driver's A+ port
Stepper motor's green wire connect to driver's A- port
Stepper motor's yellow wire connect to driver's B+ port
Stepper motor's blue wire connect to driver's B- port

Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403

General Specification:

Step angle accuracy:+ - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy:+ - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ---- +50deg

Insulation resistance:100ohm Min,500VDC

Insultion Strength--------500VAC for one minute

Datasheet(23HS6403,6.35mm diameter shaft,165oz-in or 11kg.cm holding torque)

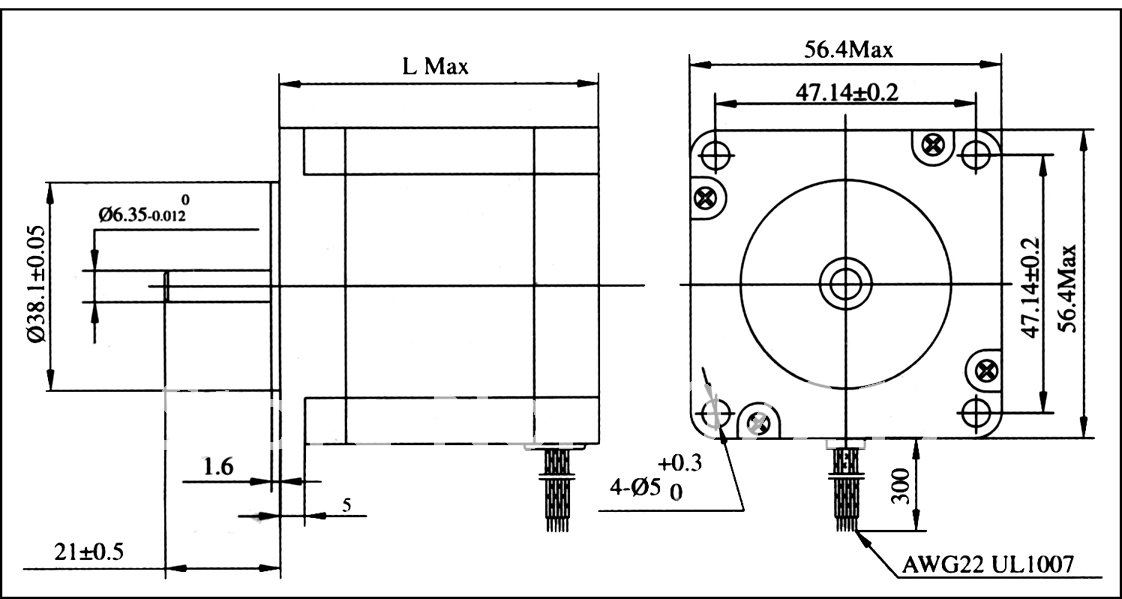

Drawing:

Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403
