3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

Brand Name : RATTM MOTOR

Model Number : 3018 PRO

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD108-135/Set

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 500 sets / Month

Delivery Time : 3-8 work days

Packaging Details : Carton

Product Category : CNC Engraving Machine

Working area : 300x180x45mm (11.8" x 7.1" x 1.8")

Frame size : 420x350x270mm (16.53" x13.78" x 10.63")

Spindle : Diameter 45mm 10000 rpm maximum power 120W

Step motor : nema17 stepper motor 1.3A,0.3N.m

Support System : Windows XP SP3,Win 7,Win 8,Win 10 (32/64 can be);Linux

Power supply : 24V 5.6A power adapter (input voltage 110-240VAC)

Software : GRBL controller/candle

Contact Now

Upgrade 3018 Pro Router CNC Engraving Machine Kit, With Limit Switches & Emergency Stop

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax

Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax

United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax

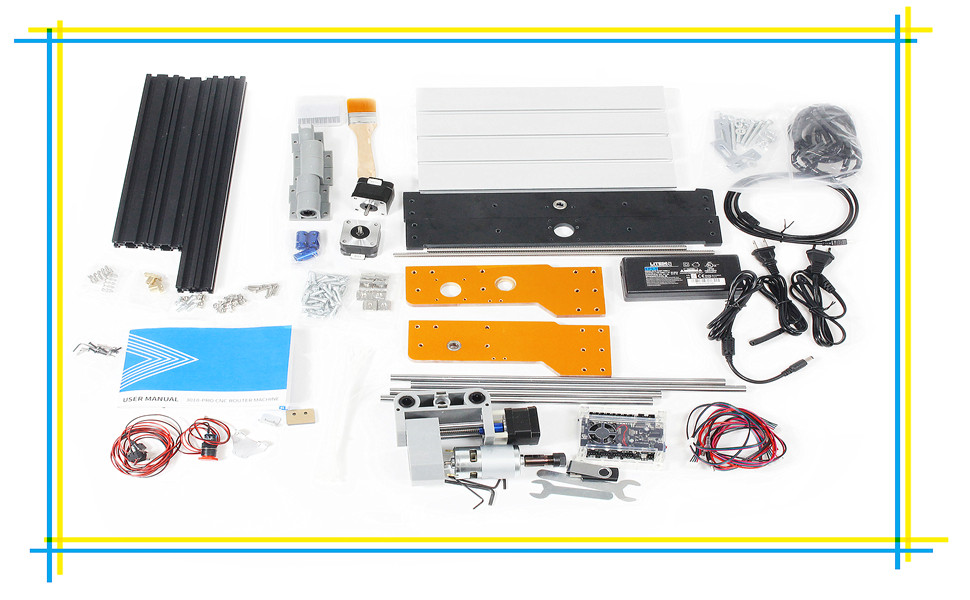

Package include:

  • 1Set Upgraded 3 Axis 3018 Pro CNC Router Engraving Milling Machine Kit
  • 3x Limit switches (XYZ axis)
  • 1x Emergency stop
  • 1x GRBL 1.1f Control Board
  • 1x 775 spindle motor with ER11 Collet
  • 1x 24V DC 5A Power Supply
  • 10 x Tip 0.1 mm, 20° φ3.175 mm Drill Bits
  • 4x Plate clamps
  • 1Set Allen Wrench
  • 2x ER Wrench
  • 1x Brush
  • 1x Spindle motor harness 60cm
  • 3x Stepper motor harness 60cm
  • 1x 4G USB flash drive include the english user manual & GRBL software

Requires assembly

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

Specification:

  • Working area: 300x180x45mm (11.8" x 7.1" x 1.8")
  • Frame size: 420x350x270mm (16.53" x13.78" x 10.63")
  • Spindle: 775 100W spindle motor (24V:10000r/min)
  • Processing thickness: 4.5cm (1.8") (height 6.4cm)
  • Material: PA6 nylon & aluminum profile
  • Screw rod: T8 screw rod, lead 4mm, double copper nut to eliminate backlash
  • Spindle Chuck: ER11 Collet (can be equipped with 0-7mm)
  • Step motor: Nema17 stepper motor 34MM,1.33A,0.3N.m,43oz-in
  • Power supply : 24V 5.6A power adapter (input voltage 110-240VAC)
  • Support System: Windows XP SP3,Win 7,Win 8,Win 10 (32/64 can be);Linux
  • Connection: PC-USB connection
  • Software: GRBL controller/candle
  • Supporting file: G-code (.nc/.txt/.tape/.gcode)
  • Processing accuracy: about 0.2mm

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

Q&A

Q: What materials can the milling cutter generally engrave or cut?

A: Wood, acrylic (acrylic), pcb, pvb, soft metal, iron, glass, stone etc.

Q: What thickness of wood or acrylic can generally be cut by module?

A: 3-5mm wood board (acrylic), speed setting 100, power setting 1000 by module; Multiple cuts can cut 12mm wooden boards by spindle.

Q: What format files does the Grbl control(Candle) software support?

A : Support Gcode files of nc, ncc, ngc, tap, txt

Q: The X,Y and Z axis of the machine cannot be moved,what should I do?

A: First check whether the wires are correctly connected, whether the power switch of the control board is pressed, and then check whether the coupling is off.

Q: What should I do if the control board cannot be connected?

A: Exit the software, unplug the wire, and reconnect it. Or update the firmware.

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

775 spindle motor 100W 10000RPM

  • Parameters of this 775 spindle : 100W spindle motor (12-36V) 24V:10000rpm/min
  • Mounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm.
  • Spindle PWM speed: Support;power 0-100% adjustable
  • Shaft diameter: 15mm;
  • Motor diameter (without magnetic sleeve): 42mm
  • Drill bits: 10pcs tip 0.1mm ,20 degree,diameter3.175mm.

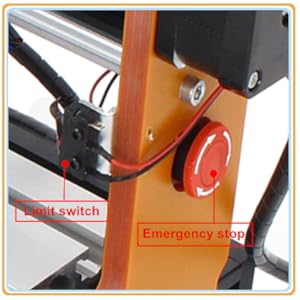

With E-stop & XYZ Limit switches

  • The upgraded cnc 3018 pro machine is with emergency stop button and XYZ axis limit switches.

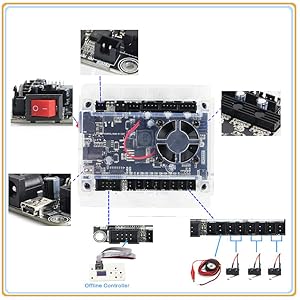

GRBL controller board

  • Connection: USB (USB-CH340)
  • Software: GRBL controller, UniversalGcodeSender
  • Input voltage: 12-24VDC
  • Master chip: atmel 328P (arduino nano)
  • Spindle drive chip: MOSFET (recommendation 24V, current : within 10A
  • Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17/Nema23)
  • Power Interface: 5.5-2.5mm DC interface
  • Support 3-pins module: support 0.5W-20W module

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

Advantages

  1. Add emergency stop button port, probe port and XYZ limit port.
  2. The terminal of limit switch,tool setting and emergency stop button are all 2-pin 2.54mm sockets.
  3. Add the outer casing: protect control board in transit,to avoid short circuit problem during use;
  4. Add the power button switch;
  5. Cancel the drive module,use integrated imported stepper motor drive,with short circuit protection,and integrated heat dissipation aluminum alloy;
  6. Add the fan port to force heat dissipation;
  7. Add offline recognition,can insert offline modules and computers at the same time.Offline will automatically identify if there is computer control.
  8. Enhanced spindle drive,can support 20000rpm spindle.support more powerful spindle.
  9. Improved USB interface: The original USB interface is patch soldering, transport collision and improper use, easy to drop, now changed to plug-in, very strong;
  10. The spindle drive increases the optocoupler isolation, which makes the control board generate less heat, and the spindle speed adjustment is more linear and safer.

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

Port specifications

  • Limit switch/Probe/Estop port: 2-pin port 2.54mm pitch
  • Module connection port: 3-pin port 2.54mm pitch
  • Spindle connection port: 2-pin port VH3.96mm pitch
  • Stepper motor port: 4-pin 2.54mm pitch
  • Power Interface: 5.5-2.5mm DC interface

Support two engraving methods

  • The control board support two engraving methods,can support 24V Spindle Motor and 12V 3A max PWM 3-pins modules
  • Our package comes with a spindle motor but without the module in the picture above.

Compared with the old version

  • Add the function of X/Y/Z axis limit switches,optimized the XYZ limit port and the port connected to the device,making wiring and operation easier.After installing the limit switch, when the XYZ axis moves beyond the travel of the engraving machine, the limit switch will trigger the machine to automatically stop the movement.
  • Add the function of emergency stop button,this function can be used when an emergency stop is required at work, making our work safer and more efficient.
  • Add the power button switch and move the power switch button from the bottom to the side,simple operation,more safety in the process of using the machine.

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

3018 Pro Router CNC Engraving Machine With Limit Switches & Emergency Stop

Applications

  • Upgraded CNC 3018 PRO Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;
  • Upgraded 3018 PRO cnc machine is very easy to install,with stable structure.
  • Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other metal materials, but can not carve hard metal, jade or other very hard texture of the items.
  • If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.

More Q&A

Q: The X,Y and Z axis of the machine cannot be moved,what should I do?

A: First check whether the wires are correctly connected, whether the power switch of the control board is pressed, and then check whether the coupling is off.

Q:What should I do if the control board cannot be connected? A:Exit the software, unplug the wire, and reconnect it. Or update the firmware.

Q: How to modify the parameters when the limit switch is activated?

A: Enter 21=1 and 22=1 commands.

Q: The engraved image is reversed,what should I do?

A: Enter 3=2 or RST=*command

GRBL software

  • Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.
  • File formats supported by the software: *.nc, *.ncc, *.ngc, *.tap,*.txt and *.cnc.
  • Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
