3 Axis 3040 CNC Engraving Machine 220V 500W with 1204 Ball Screw

Name: 3 Axis 3040 CNC Engraving Machine 220V 500W with 1204 Ball Screw
Brand: RATTM MOTOR
Price: 488 USD

China 3 Axis 3040 CNC Engraving Machine 220V 500W with 1204 Ball Screw wholesale

Brand Name : RATTM MOTOR

Model Number : 3040 CNC Engraving Machine

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD488-630/Set

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 500 sets / Month

Delivery Time : 3-8 work days

Packaging Details : Carton

Product Category : CNC Engraving Machine

Engraving Range : 390x285mm

Machine Dimension : 610x485x395mm

Repeat positioning Accuracy : 0.05mm

Lead Screw : 1204 ball screw

Spindle : 500W DC spindle motor

Operate system : WIN XP/2000

Support software : Mach3,EMC2,KCAM4...

Contact Now

CNC 3 Axis 500W 3040Z-DQ Mach3 Parallel / USB Port 3040 CNC Engraving Machine 220V 1204 Ball Screw

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location	Shipping Carrier	Delivery Countries	Delivery Time	Advandge
Germany&Czech Republic	DHL/GLS	EU Countries	3-12 Business days	1. Fast Delivery 2. No VAT Tax
United States	UPS/USPS	United States only	3-12 Business days	1. Fast Delivery 2. No VAT Tax

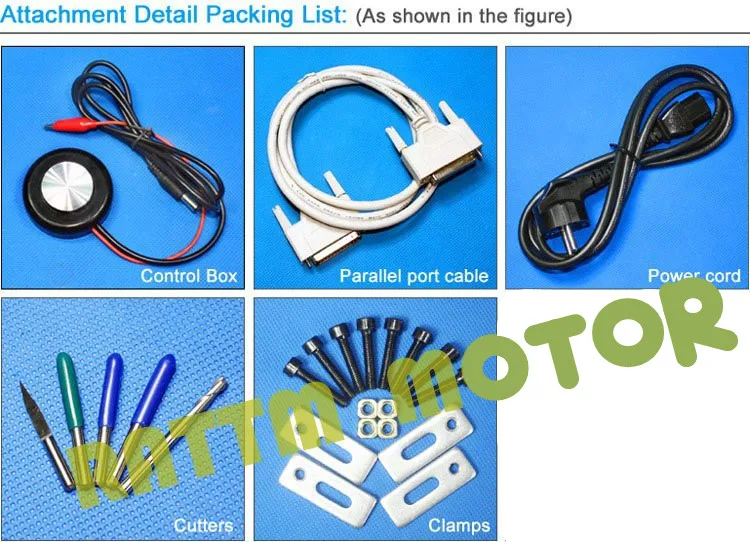

Package include:

1 x 3040Z-DQ CNC Router machine 220V.
1 x Control box
3 x Aixs stepper motors
1 x Parallel cable
1 x Power cable(US,UK,EU,AU plug)
1 x Tool box and tools
English User manual will send by email.

Note1:This machine is LPT port, but if you want USB port, you can order the type with NC200 adapter.

NEW 3040 CNC ROUTER ENGRAVER/ENGRAVING DRILLING Ball screw 220VAC/110VAC

3040Z-DQ model: 500W air cooled spindle motor ER11

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

Engrave almost anything on almost any surface

X Y and Z axis carving make more precise and and three-dimensional effect.

Cover plates reducing pollution for the screws and shafts.

More steady and strong equiped with aluminum alloy frame materials.

Reinforced and thickened machine body make transportation absolutely to be safer and longer life time

Technical Parameters

Machine Dimensions: 610×485×395mm

Rack material:6061 and 6063 hard aluminium alloy(the unique and dedicated mold extrusion profiles)

Engraving Area:390×285mm

Z-axis Stroke:55mm,Engraving depth depends on the length of the tool edge

Max workpiece thickness:<=70mm

Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)

Transmission unit:SFU1204 ball screw

Spindle motor:New DC spindle motor,500W/48V.11000rpm,lower noise,high precision,Support Mach3 control

Collet: ER11,1/8”(3.175mm)

Stepping motor and controller: two-phase 57/1.8A ,8 segments driver

Maximum speed: 4000mm/min

Engraving speed: 300-3000mm/min

Repeat positioning Accuracy: 0.05mm

Interface:Parallel port

Software Compatability:Mach3/Emc2,(Type3,Wentai, ArtCAM,Coppercam)

Command code: G code/.nc/.ncc/.tab/.txt

Machine weight: 28kg(including packaging)

Main
application: engrave for Wood,bamboo,normal
PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can
engrave on gold,silver,copper,aluminium,Pb etc soft metal surface
working,but not milling working

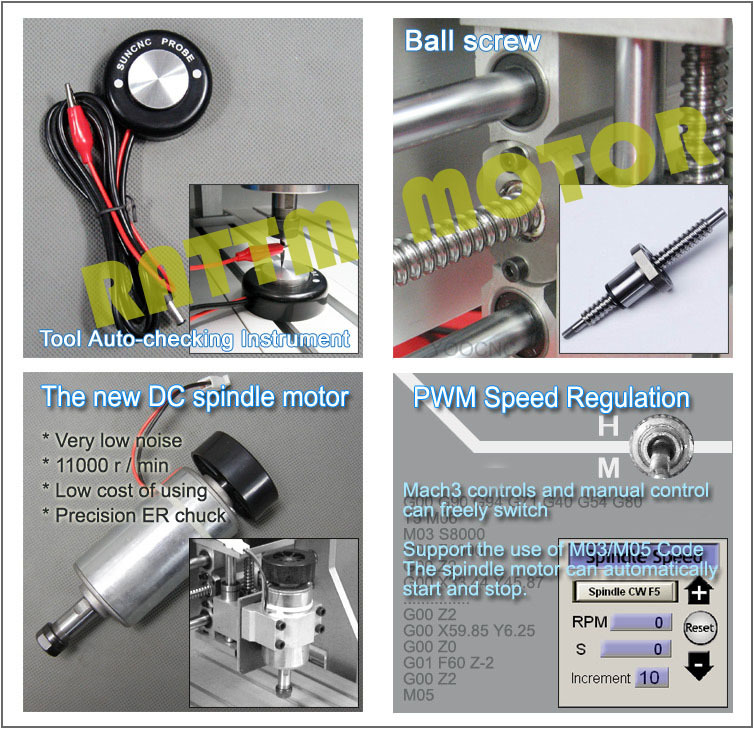

3040Z-DQ advantage(compare with 3040T+D and 3040T-DJ model) :

1.same size stepper motor but more torque,and the cables use more quality cnc flexible type

2.the power supply use ring transformer,more anti-interference and use more powerful controller

3.New
11000rpm spindle motor,and can turn and off the spindle by mach3 and
PWM spindle speed control.more stable long working time

4.3 axis SFU1204 ball screw

5.95% aluminium material produced by mould extrusion forming,more beautiful and quality

6.Add the Z axis tool setting function,let user feel more better

3 Axis 3040 CNC Engraving Machine 220V 500W with 1204 Ball Screw

How to use:

Please read the English user manual to see how to set up the software and how to use this machine.

1.Assembling and locating the CNC machine on steady desk well.

2.Make sure that your computer has a on-board parallel port output.

3.Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.

4.Connecting the control box with the CNC machine and you computer.

5.Fllowing our manual or guideline to set uo the software.

6.You can enjoy making you dream with using our CNC machine now.
