Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer

Name: Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Brand: RATTM MOTOR
Price: 12.3 USD

China Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer wholesale

Brand Name : RATTM MOTOR

Model Number : Single Shaft Worm Gear Motor

Certification : CE

Place of Origin : China

MOQ : 1

Price : $12.3-13.6

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100Pieces/day

Delivery Time : 3-5 work days

Packaging Details : carton case, 42*42*48

Step Angle(°)| Length(mm)| Current(A) : 1.8

Motor length : 48mm

Rated current : 1.8

Inductance : 3.2

Motor weight : 400

Wire : 4

Contact Now

Nema17 stepper motor 17HS8401 2 phase four-wire 48mm For CNC / 3D printer accessories

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location	Shipping Carrier	Delivery Countries	Delivery Time	Advandge
Germany&Czech Republic	DHL/GLS	EU Countries	3-12 Business days	1. Fast Delivery 2. No VAT Tax
United States	UPS/USPS	United States only	3-12 Business days	1. Fast Delivery 2. No VAT Tax

General Specification:

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ Min,500VDC

Insultion Strength--------500VAC for one minute

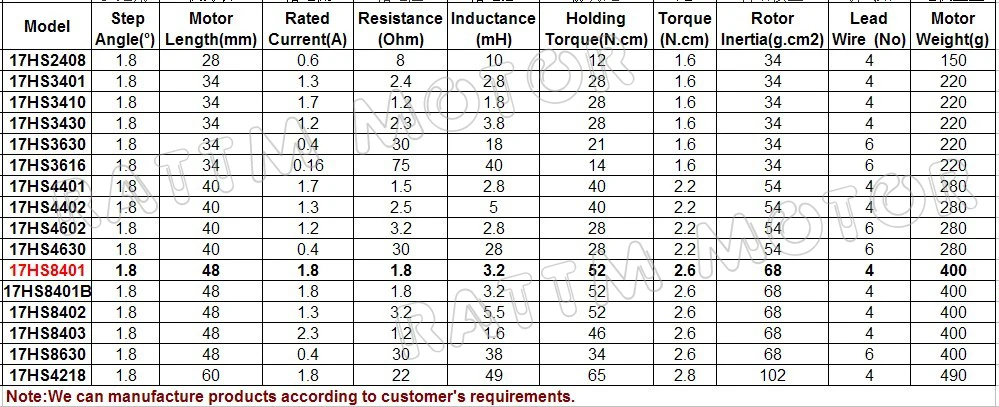

Datasheet(17HS8401,1.8A,78 oz-in or 4.8kg.cm holding torque,5mm diameter shaft):

Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer

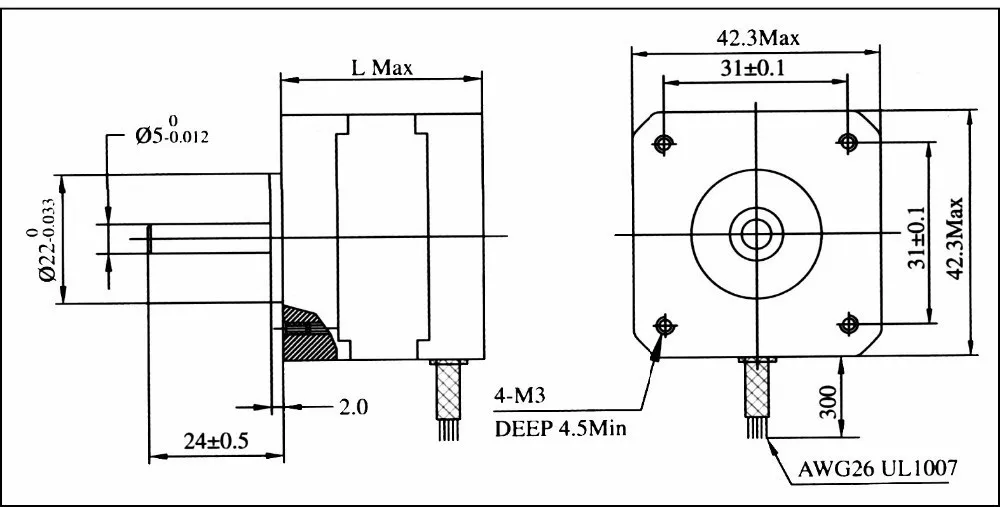

Drawing:

Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer

Wiring:

Red: A+

Green: A-

Yellow:B+

Blue: B-

Usage or Application

This products are widely used in engraving machine, printer, medical equipment,

embroidery machine, stage lighting, textile automation, printing,

packaging and other industries automation equipment.
