Nema 17 CNC Stepper Motor Dual Axis 78 Oz-In 48 Mm 1.8A

Name: Nema 17 CNC Stepper Motor Dual Axis 78 OzIn 48 Mm 18A
Brand: RATTM MOTOR
Price: 10 USD

China Nema 17 CNC Stepper Motor Dual Axis 78 Oz-In 48 Mm 1.8A wholesale

Brand Name : RATTM MOTOR

Model Number : 17HS8401B

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD10/Piece

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100Pieces/day

Delivery Time : 3-5 work days

Packaging Details : carton case, 42*42*48

Current / Phase : 1.8A

Holding Torque : 78 Oz-in/ 48Ncm

Step Angle(degrees) : 1.8deg

Phase : 2

Type : HYBRID

Name : NEMA17 stepper motor

Size : 42x42x48mm

is_customized : Yes

Contact Now

Nema 17 CNC Stepper Motor (Dual Axis) 78 Oz-In 48 Mm 1.8A

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location	Shipping Carrier	Delivery Countries	Delivery Time	Advandge
Germany&Czech Republic	DHL/GLS	EU Countries	3-12 Business days	1. Fast Delivery 2. No VAT Tax
United States	UPS/USPS	United States only	3-12 Business days	1. Fast Delivery 2. No VAT Tax

Package include:

1x 17HS8401B Stepper Motor (Dual shaft)

General Specification:

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------?20deg ~+50deg

Insulation resistance:100M? Min,500VDC

Insultion Strength--------500VAC for one minute

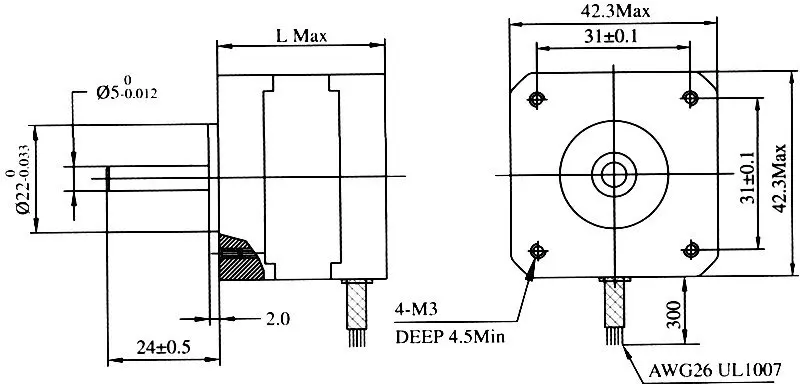

Datasheet(17HS8401B,1.8A,78 oz-in or 4.8kg.cm holding torque,front shaft is 5mm diameter shaft,

18mm lenth; back shaft is 5mm diameter and 15mm length)

Nema 17 CNC Stepper Motor Dual Axis 78 Oz-In 48 Mm 1.8A

Wiring:

Red: A+

Green: A-

Yellow: B+

Blue: B-

Usage or Application

This products are widely used in engraving machine, printer, medical equipment,
embroidery machine, stage lighting, textile automation, printing,
packaging and other industries automation equipment.
